equip your rig with the toughest
winches on the market
Engineered for extreme recoveries, Carbon and Runva Winches deliver unmatched power, reliability, and durability.
When the terrain fights back, you need a winch that won't.
carbon xd 20 - 20,000LBS winches

Easy Engagement
and Disengagement

20,000lb (9071kgs)
Pulling Power

Heavy Duty
Pressure Tested

Cast & Precision Machined Alloy Winch Housing

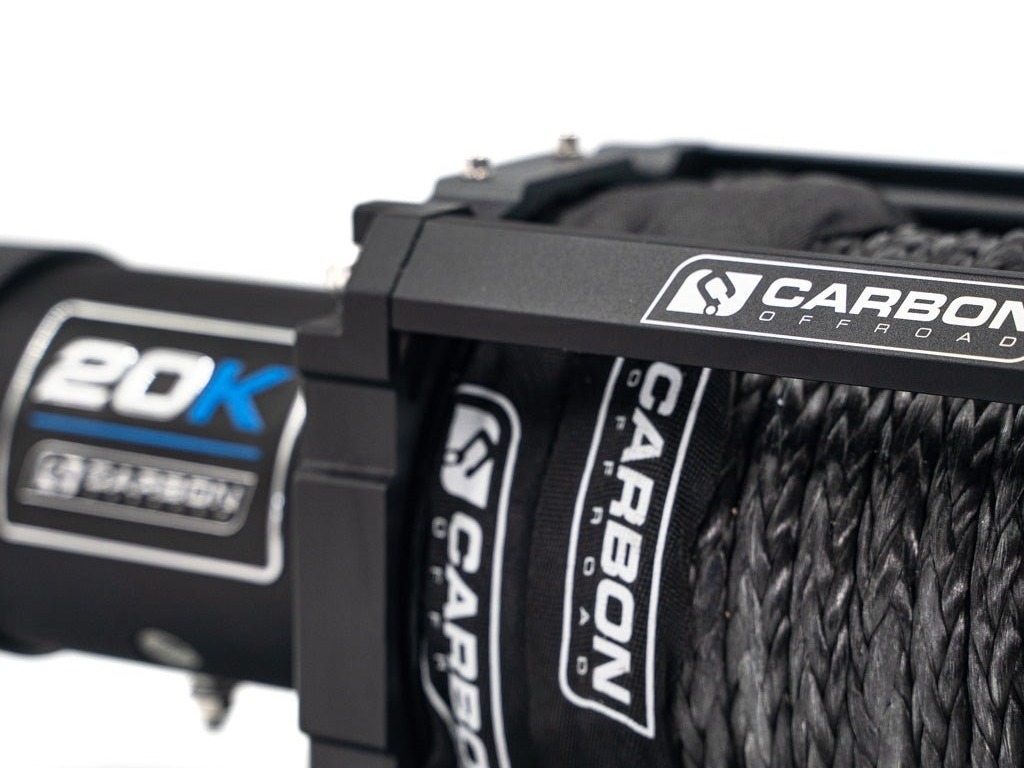

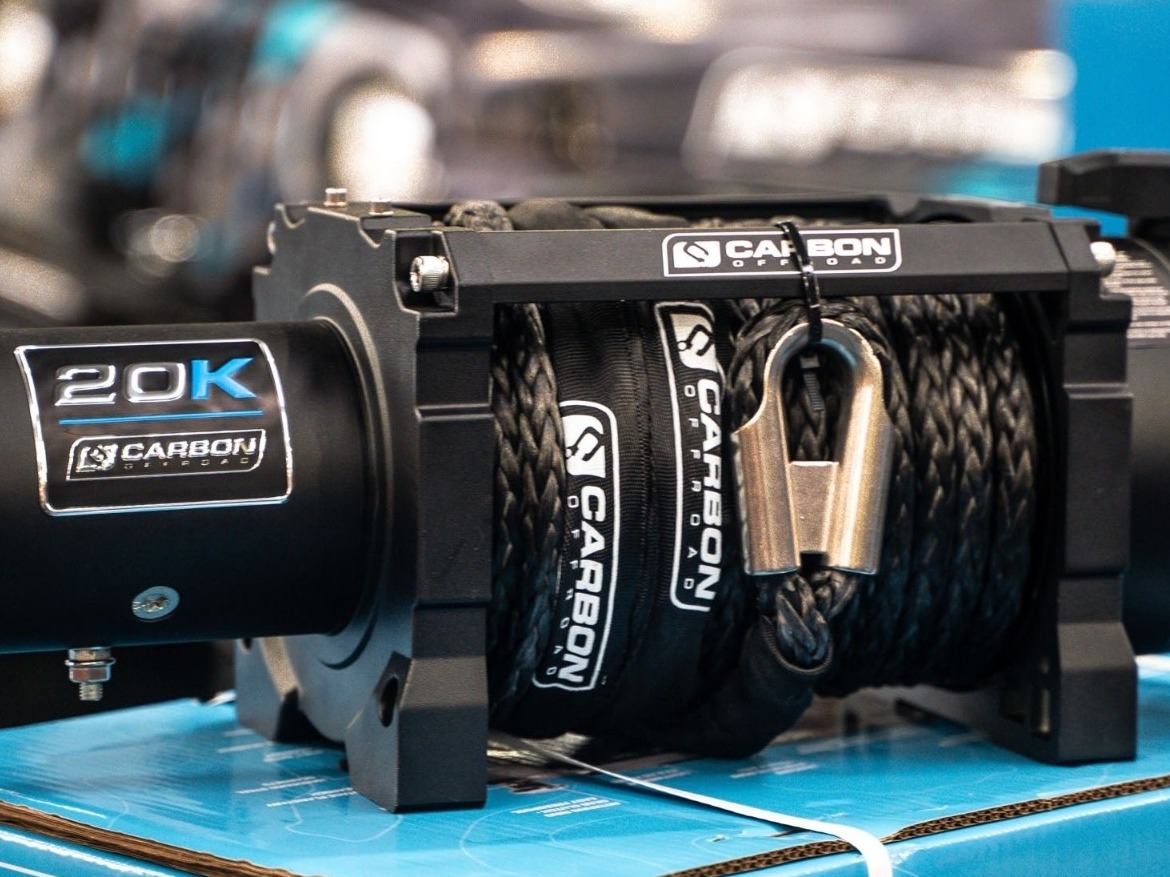

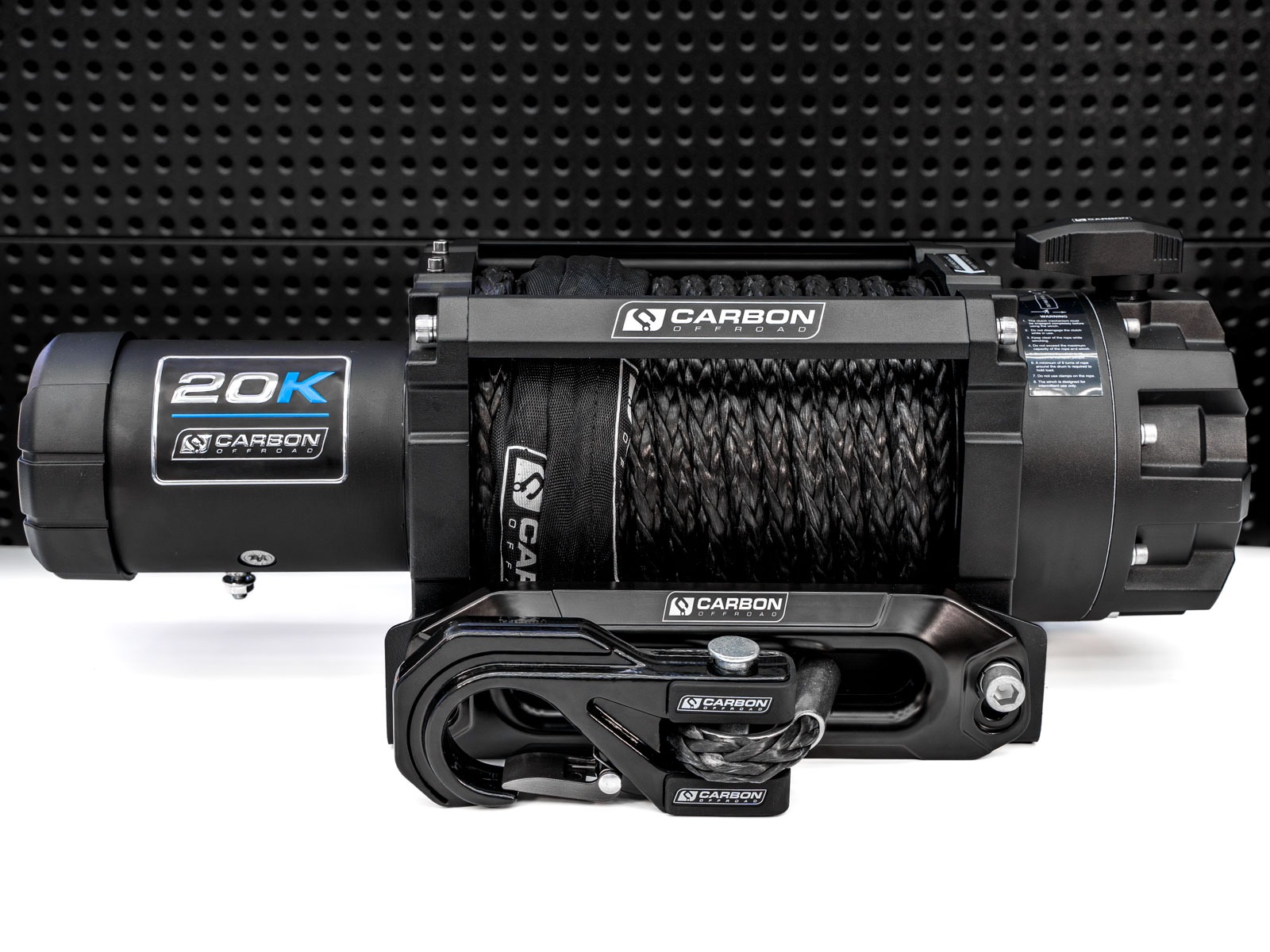

Carbon XD20 - 20,000lbs
24/12V Electric Winches

CARBON XD 20K KEY FEATURES
High-Efficiency 24 or 12V Motors: The powerful electric motor delivers faster line speeds and superior pulling strength, reducing recovery times and maximizing performance when it matters most. Its high-efficiency design minimizes energy consumption while offering peak output for extended recoveries. With a single line pull of 9 tonne, Tank winches have the power you need.
Precision Control: Featuring a user-friendly wireless remote-control system, Carbon XD Winches allow for precise line control from a safe distance. This ensures maximum safety and accuracy during every recovery operation.
Built for Tough Conditions: With a rugged, weather-resistant housing and corrosion-resistant finish, Carbon XD20 - 24/12V Winches are built to handle the harshest elements. Whether in mud, rain, or extreme heat, these winches keep delivering exceptional performance when you need it most.
Heavy-Duty Synthetic Rope: Lightweight, high-strength 14mm thick synthetic rope for easy handling and reduced recoil risk, ensuring dependable performance in challenging conditions.
Enhanced Safety Features: Carbon XD20 - 24/12V Winches are equipped with automatic load-holding brakes and robust fairleads to prevent line slippage, adding an extra layer of security to every recovery effort.

the tech stuff
SPECIFICATIONS
- Rated Pulling Power: 20,000lb (9072kg)
- Power: 12V DC or 24V DC
- Motor: 7HP Series Wound intermittent duty cycle
- Hand Control: wired hand controller with 3,6m lead and wireless controller also included

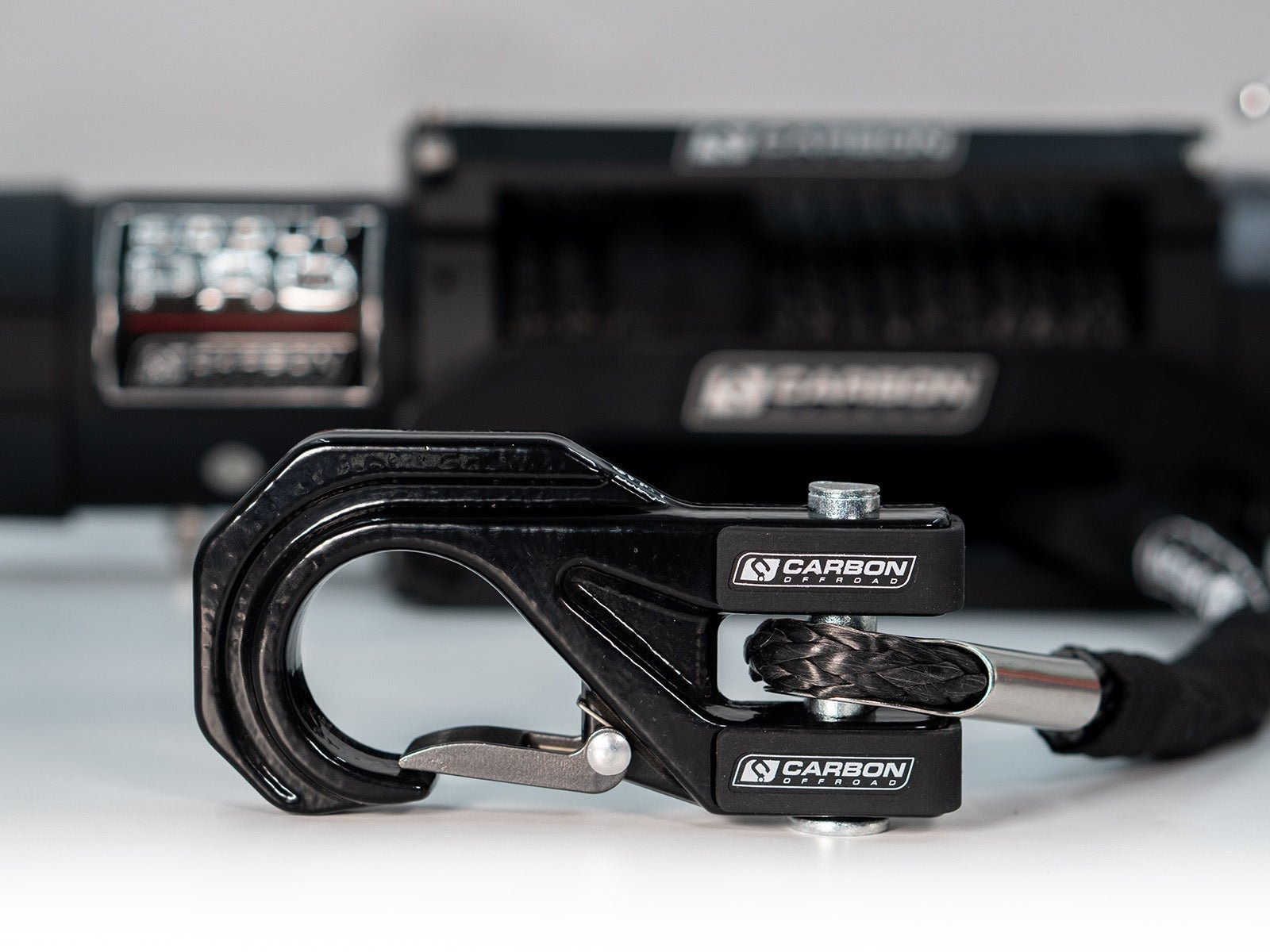

- Hook: High strength forged alloy wide gate hook
- Isolator: Heavy duty marine rotary style isolator with mounting bracket.
- Winch Housing: Cast and precision machined alloy
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Gear Train: 345:1 Ratio 3 stage planetary gearset

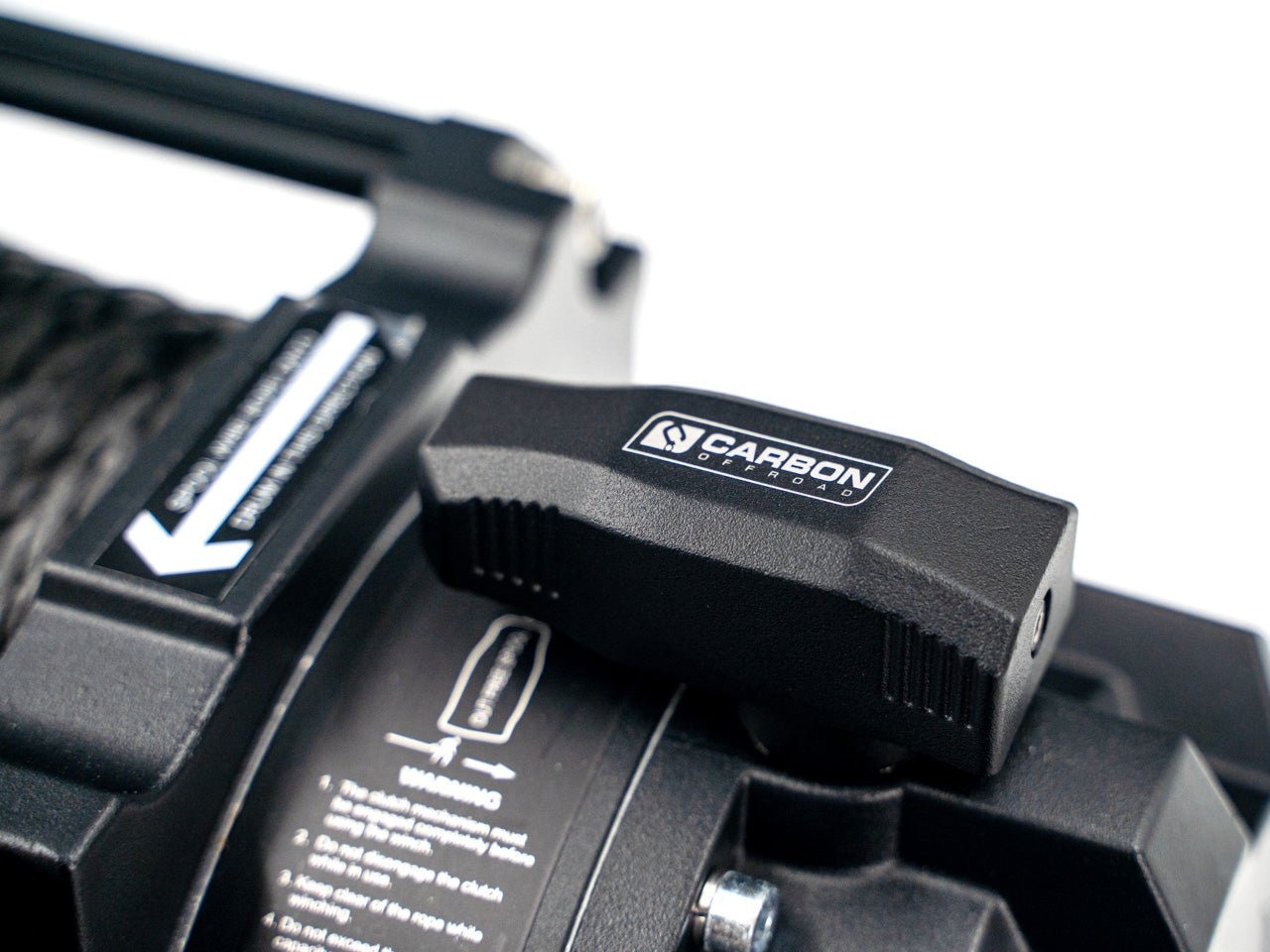

- Clutch: Rotating ring gear clutch - easy engagement and disengagement
- Brake: Automatic brake in the motor bracket
- Synthetic rope: 25m of 13mm diameter UHMWPE fibre
- Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)
- Drum Diameter: 88mm
- Battery: 650CCA minimum vehicle battery size for winching.
- Shipping Carton Weight: 37KG
- Weight as fitted to vehicle: 33.4kg

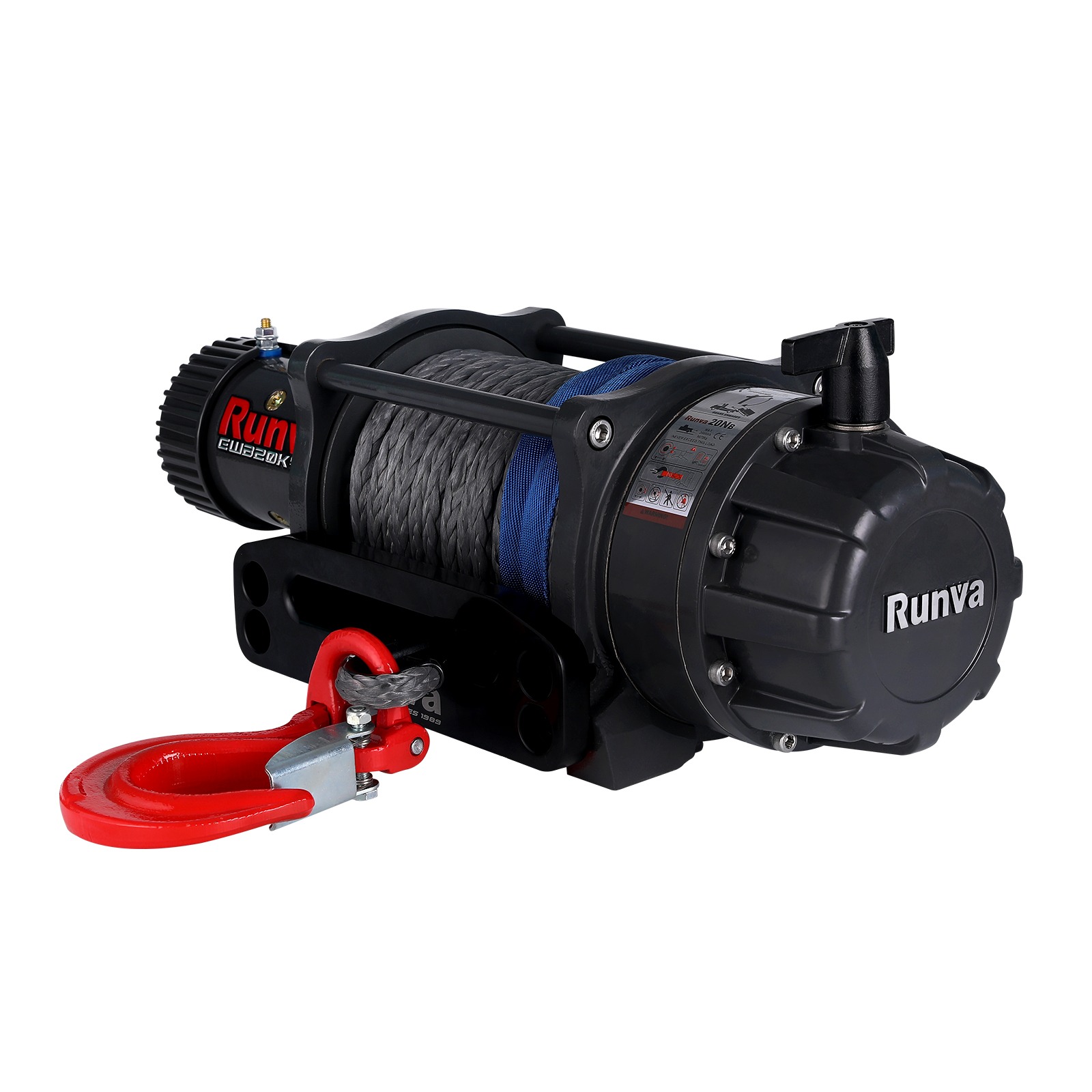

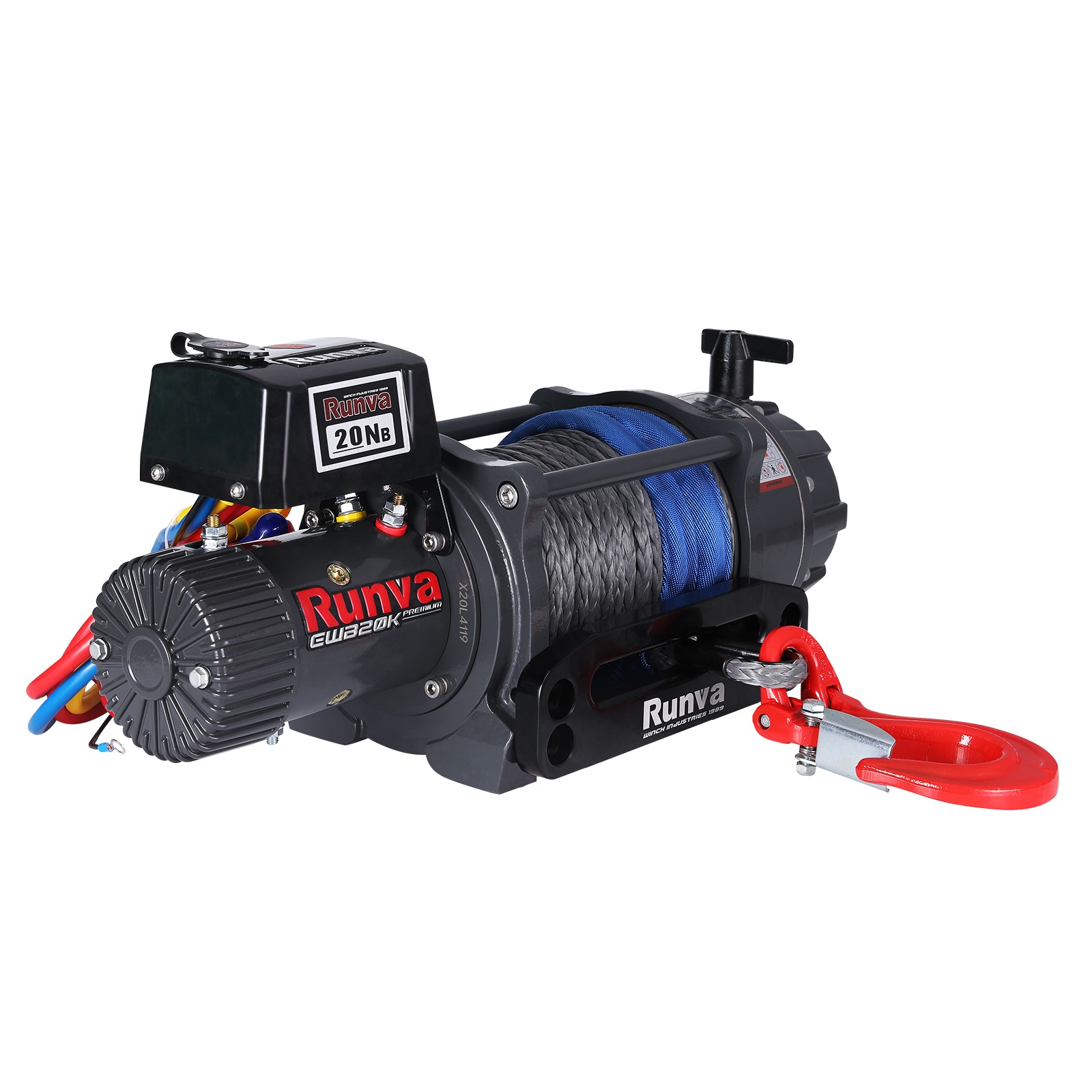

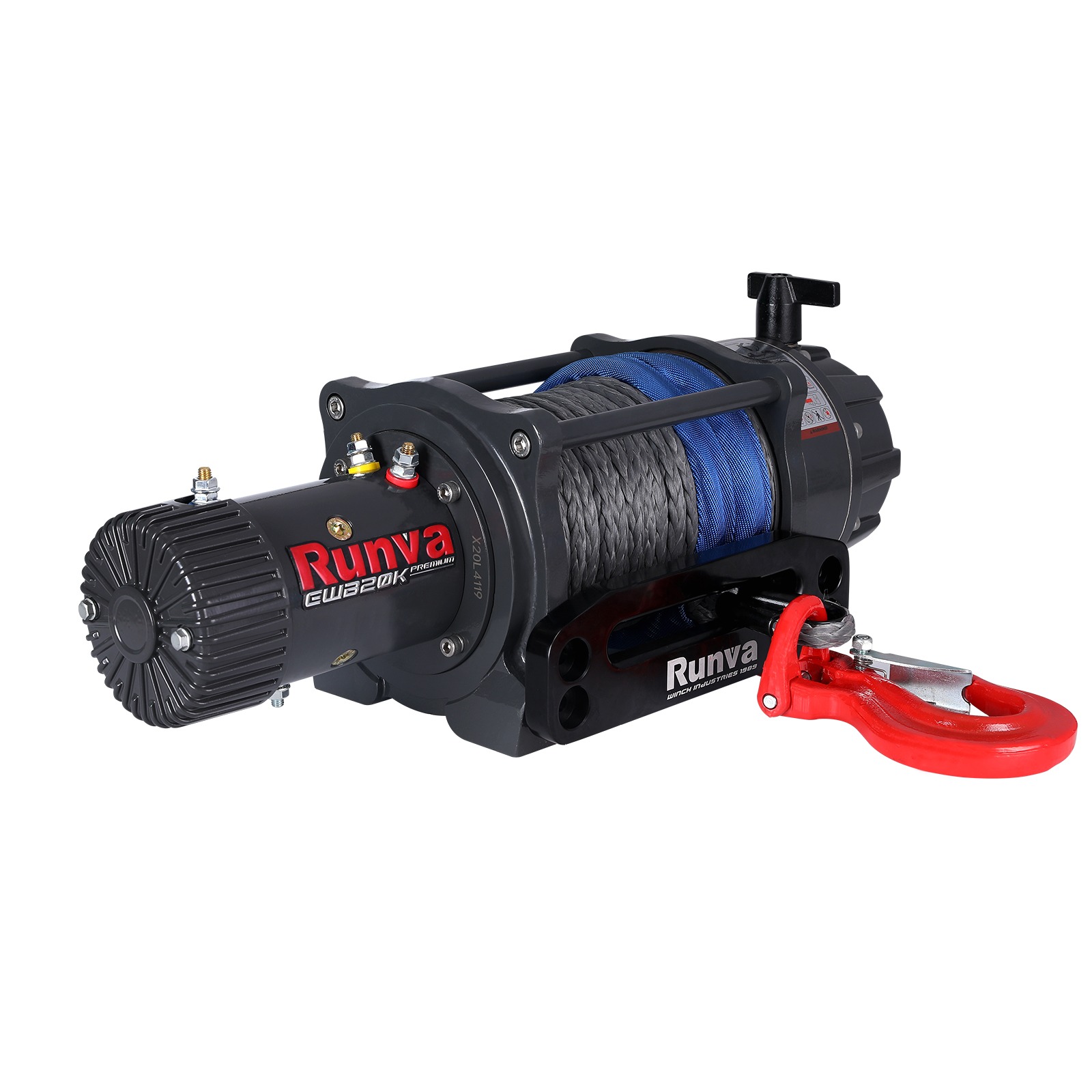

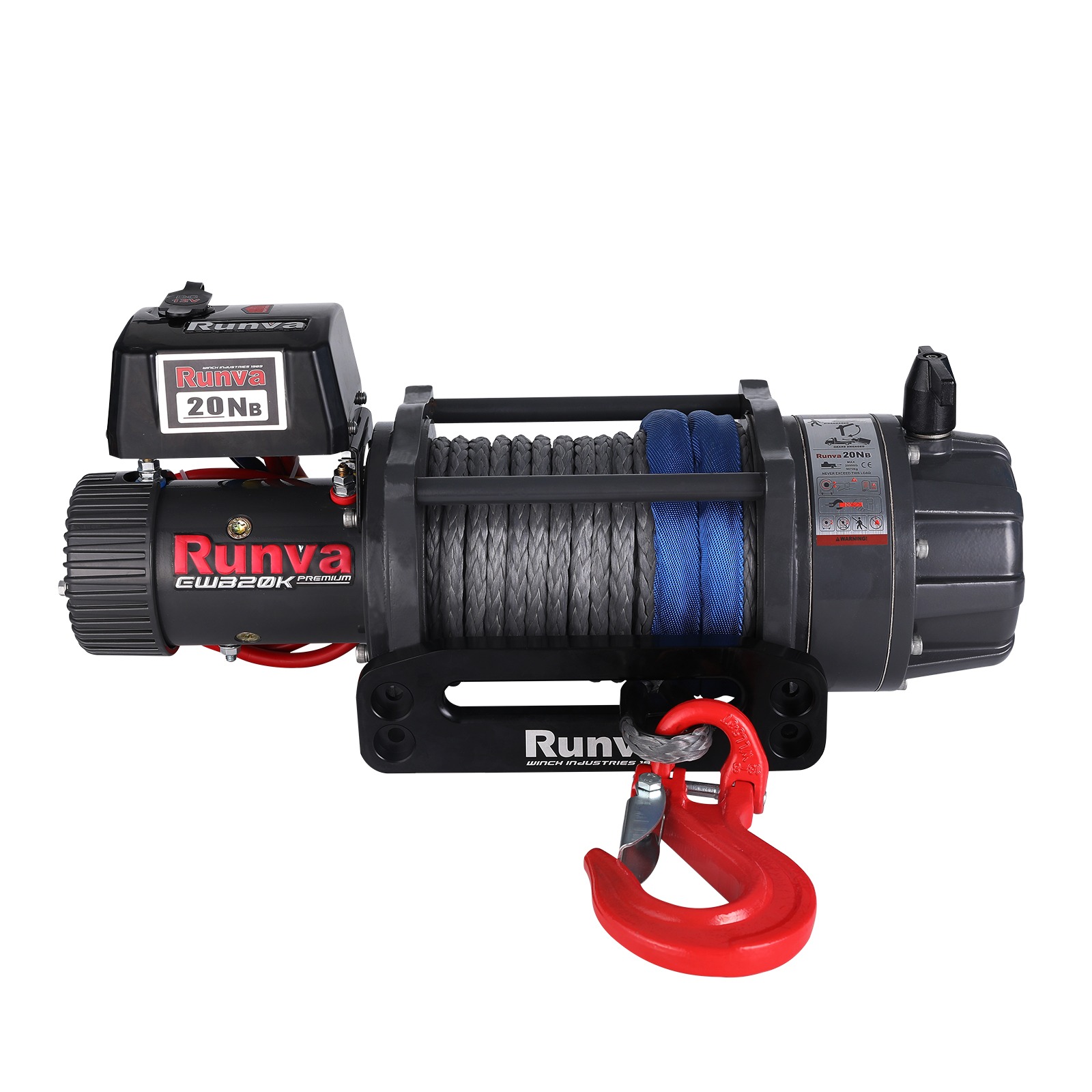

RUNVA EWB20000 PREMIUM 24/12V WINCHES




RUNVA EWB20000 - 20,000lbs
24/12V Electric Winches

RUNVA EWB 20K KEY FEATURES
The Runva EWB20000 Premium is our extreme duty 20,000lb recovery winch. Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 370:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of 8.5M/Min, this winch will get the job done in no time.
This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.
The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB20000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.
If you are looking for a heavy duty winch, for either recreational or commercial applications, the EWB20000 Premium is the winch for you. This model is perfect for your expedition Truck in a front or rear application.
